YANMAR 4JH57 INBOARD DIESEL ENGINE SALE!!

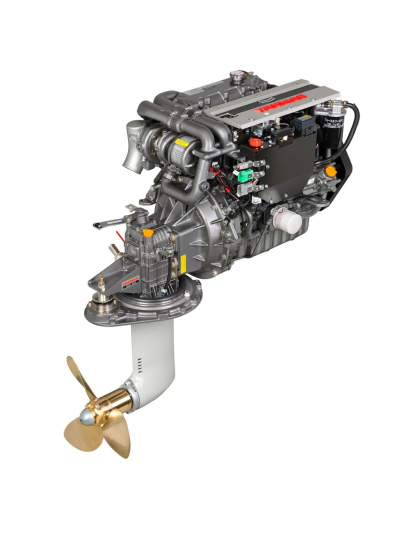

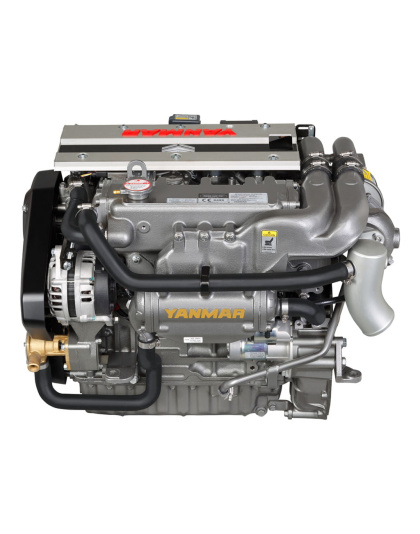

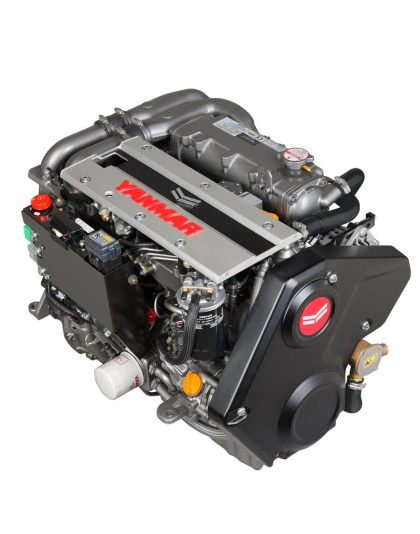

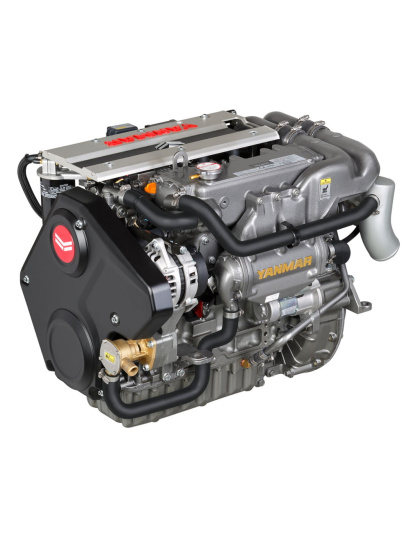

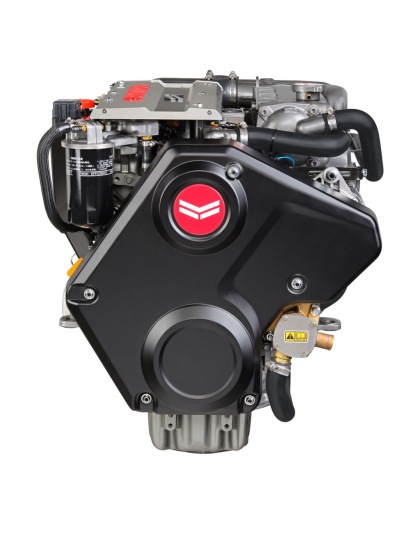

YANMAR’s new generation JH-Common Rail Series with class leading features out performs its competition. Compact, powerful, smooth, quiet, efficient and interconnective, the JH-CR Series is perfect for any application whether rib, tender, sailboat or catamaran, new or re-power. With over a 100 years of innovation, unequaled reliability, and the largest marine engine global service network, choosing a YANMAR ensures you will enjoy many safe and carefree years on the water.
$1,150.00
The Yanmar JH-CR lineup brings you 5x Best in Class features – Clean, Interconnective, Quiet, Powerful & Fuel Efficient – setting the global standard in sailboat and small craft propulsion. With a range of power ratings across one design, the JH-CR engine is the perfect solution to fit across a wide variety of boats sizes and applications. And with a similar footprint to previous models and competition alike, it is the ideal choice for repowers.
Features
Standard Engine Package
Optional Accessories
SPECIFICATIONS
#yanmar #yanmarinboard #inboard
Features
- Genuine YANMAR-based engine featuring a custom-designed common rail system
- Advanced fuel injection technology for sailboats and smaller motorboats and commercial vessels
- Sets the global standard in sailboat and small craft propulsion
- Wide range of power ratings in one model to fit a variety of applications
- Versatile control options with mechanical control as standard and option to upgrade to electronic controls
Standard Engine Package
- Exhaust mixing elbow [L-type]
- Alternator 12V – 125A
- B25 panel
- Flexible mounts
- Mechanical throttle sensor
- Fuel pre-filter with water separator
- Fresh water expansion tank
- Belt safety cover
Optional Accessories
- High-riser mixing elbow [instead of L-elbow]
- Secondary alternator 12V – 125A or 24V – 60A
- C35 panel
- Extension harness [3m, 5m, 10m]
- Second station
- TFX Sidemount control head
- VC10 Vessel Control System
- NMEA2000 Engine monitoring system
- Semi 2-pole
- SOLAS including Certificate [factory fit only]
- Hot water kit with cocks
- Extension saildrive leg [75 mm]
- Propeller cone nut kit SD60
- On-board spare parts kit
SPECIFICATIONS
- Rated Output 41.9 kW / 57 mhp
- Rated Speed 3000 rpm
- Displacement 2.19 L / 134 cu. in
- No. of cylinders 4 cylinders
- Cylinder Bore x Stroke 88 mm x 90 mm / 3.46 in x 3.54 in
- Combustion system Direct Injection, Bosch Common Rail System
- Aspiration Natural
- Alternator 12V - 125A
- Dry weight without gear 220 kg / 485 lbs
- Dimensions 870 mm x 589 mm x 627 mm
- Controls Mechanical (optional - VC10 system)
- Certifications RCD 2 EPA Tier 3 EPA Tier 3C BSO II EMC SOLAS USGC
